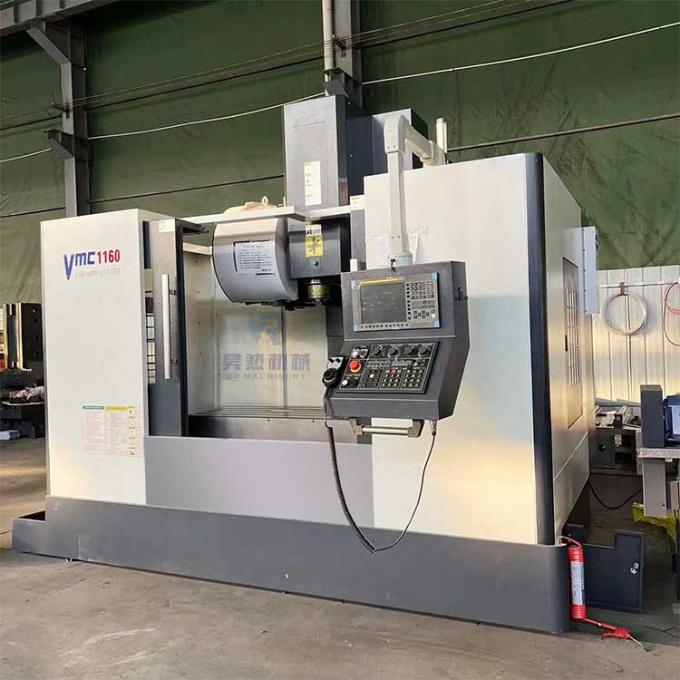

3 Axis VMC1160 Vertical Cnc Milling Machine
Brand Name:
HR
Model Number:
vmc1160
Place of Origin:
china
Certification:
ceiso
Minimum Order Quantity:
1set
Price:
usd 19000-40000
Supply Ability:
40set/month
Product Details
| Warranty: | 2 Years | Weight: | 8000kg |
|---|---|---|---|
| Condition: | New | Type: | Vertical |
| Voltage: | 380V 50HZ | Power(w): | 7.5/11 KW |
| Spindle: | Taiwan 8000rpm Spindle | Spindle Taper: | BT40 |
| Highlight |
3 Axis Cnc Vertical Milling Machine,VMC1160 Cnc Vertical Milling Machine,Cnc Machine Center Vertical Milling Machine |
||
Product Description
Cnc Machine Center 3 Axis Vertical VMC1160 Cnc Vertical Milling Machine
Product Description
CNC vertical machining cente is a semi closed-loop vertical machining center with X, y and Z three-axis servo direct control. The three axes are divided into hard rail and (optional: rolling linear guide). CNC milling machineThe guide rail has large load, wide span, high precision, compact and reasonable structure and overall dimensions. The main shaft is driven by servo motor through the same step belt. It can realize the one-time clamping of various complex parts such as discs, plates, shells, cams and molds, and can complete the processing of various processes such as drilling, milling, boring, expanding, reaming and rigid tapping. CNC milling machine CNC vertical machining cente suitable for the production of multi variety, medium and small batch products, and can meet the processing of complex and high-precision parts.CNC vertical machining center
Detailed description

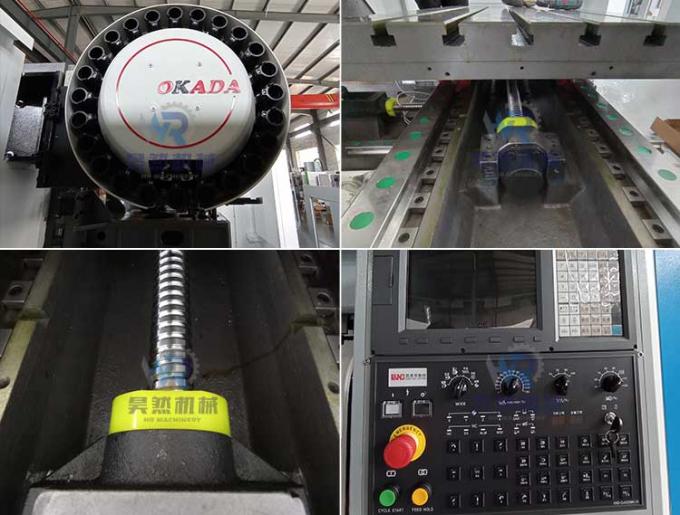

Taiwan spindle BT40/BT50 Taiwan 24T arm type auto tool changer Taiwan P-grade high precision linear guide ways and Taiwan C3 grade precision ball screws. FANUC, SIEMENS,, MITSUBISHI, GSK cnc controllers are optional. Taiwan 4th or 5th axes rotary table is optional. Tools and workpiece measuring instrument are optional.
Packing & Delivery
1. Outside package: Standard marine export plywood case. 2. Inner package: Stretchy film and plastic film for humidity. We can package according to your requests. Delivery Detail: Shipped in 30 working days after payment.
Certifications
All products are available upon request, with or without trademarks. If you need OEM service with your own brand or product, please let us know. If you have any other specific requirements, please feel free to contact us. Our factory has obtained the import and export license issued by the Ministry of foreign trade, and passed the iso9001 quality management system certification and CE certification. In the quality layer by layer, we will wholeheartedly serve for the majority of customers.
Product Highlights
Cnc Machine Center 3 Axis Vertical VMC1160 Cnc Vertical Milling Machine Product Description CNC vertical machining cente is a semi closed-loop vertical machining center with X, y and Z three-axis servo direct control. The three axes are divided into hard rail and (optional: rolling linear guide). ...
