Vmc640 4axis CNC Vertical Machining Center

Vmc640 4axis CNC Vertical Machining Center

Vmc640 4axis CNC vertical machining center

Description



Model
Vmc640
VMC650
VMC840
VMC850
VMC855
Table size (mm)
800*300
1000*400
1000*400
1000*500
1000*550
Max. allowable load (Kg)
400
400
300
500
500
X-axis stroke (mm)
600
650
800
800
800
Y-axis travel (mm)
400
400
400
500
550
Z-axis travel (mm)
450
550
550
500
550
T-slot
3-18-120
3-18-120
3-18-140
5-18-108
5-18-90
spindle center to Z-axis guide surface (mm)
460
485
445
552
590
spindle end face to work table (mm)
120-670 mm
100-650
100-650
110-610
120-670
Spindle taper hole
BT40-120
BT40-120
BT40-120
BT40-140
BT40-150
Spindle speed (r/min)
8000
8000
8000
8000
8000
X/Y/Z rapid movement (m/min)
24/24/18mm
48/48/48
30/30/18
48/48/48
48/48/48
Machine Weight (Kg)
3000
3800
3200
5300
5500
Model
VMC966
VMC1050
VMC1160
VMC1165
Table size (mm)
1100*550
1200*420
1200*600
1200*600
Max. allowable load (Kg)
600
500
800
800
X-axis stroke (mm)
900
1000
1100
1100
Y-axis travel (mm)
600
500
600
650
Z-axis travel (mm)
600
550
600
650
T-slot
5-18-100
5-18-100
5-18*100
5-18-100
spindle center to Z-axis guide surface (mm)
663
575
650
710
spindle end face to work table (mm)
100-700
100-650
120-720
120-720
Spindle taper hole
BT40-150
BT40-150
BT40-150
BT40-150
Spindle speed (r/min)
8000
8000
8000
8000
X/Y/Z rapid movement (m/min)
48/48/48
18/18/18
36/36/24
36/36/36
Machine Weight (Kg)
5600
5500
6500
6800
Model
VMC1265
VMC1270
VMC1370
VMC1580
Vmc1690
Table size (mm)
1200*600
1200*700
1400*700
1700*800
1600*800
Max. allowable load (Kg)
800
800
800
1500
1500
X-axis stroke (mm)
1200
1200
1300
1500
1600
Y-axis travel (mm)
650
700
700
800
900
Z-axis travel (mm)
650
700
750
700
700
T-slot
5-18-100
5-18-100
5-18-130
5-22-135
7-22-110
spindle center to Z-axis guide surface (mm)
710
710
713
855
936
spindle end face to work table (mm)
120-770
120-770
120-870
160-860
150-850
Spindle taper hole
BT40-150
BT40-150
BT40-150
BT50-155
BT50-190
Spindle speed (r/min)
8000
8000
8000
6000
10000
X/Y/Z rapid movement (m/min)
36/36/36
36/36/36
24/24/24
24/24/18
15/15/12
Machine Weight (Kg)
7000
7000
8000
12000
12000

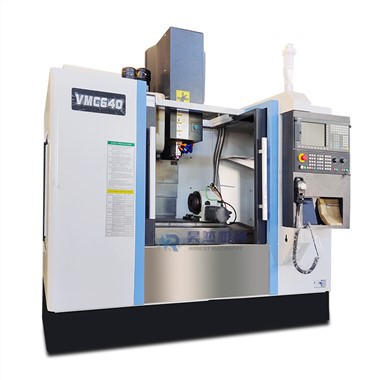

Vmc640 CNC milling machine is a semi closed-loop vertical machining center with X, y and Z three-axis servo direct control. The three axes are divided into hard rail and (optional: rolling linear guide). Vmc640CNC milling machineThe guide rail has large load, wide span, high precision, compact and reasonable structure and overall dimensions. cnc machine center The main shaft is driven by servo motor through the same step belt. It can realize the one-time clamping of various complex parts such as discs, plates, shells, cams and molds, and can complete the processing of various processes such as drilling, milling, boring, expanding, reaming and rigid tapping.

Product Details
product-1-1

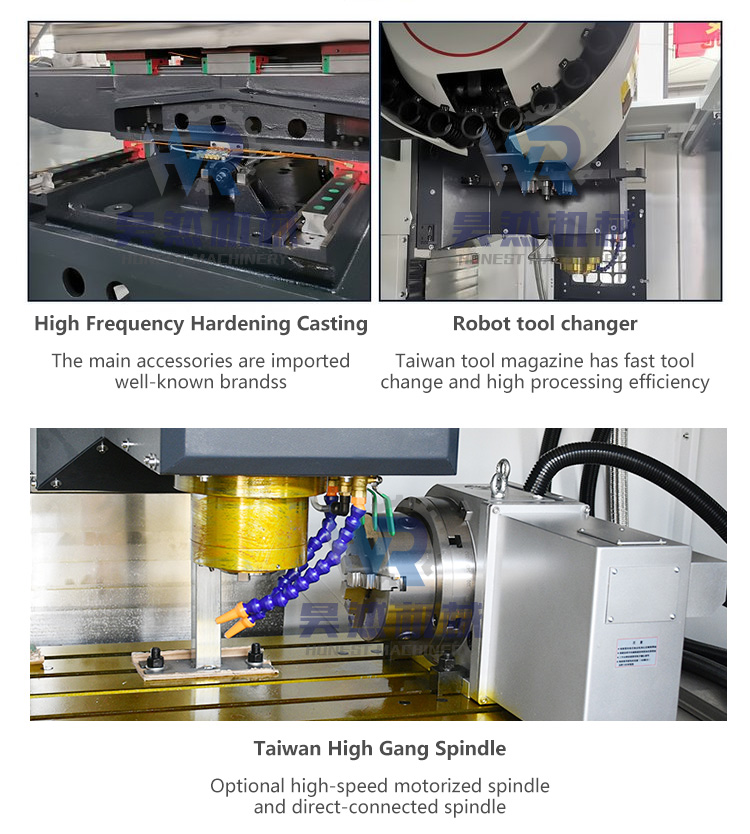

taiwan HIWIN high precison guideway Taiwan-made spindle Unit,8000-12000rpm available.Reliable Control System: machining center is suitable for producing metal product and parts in all shapes. Taiwan spindle adopts high-quality bearings with good rigidity. BT40 tool handle is standard and BT40 tool handle is optional.HT300 cast iron is adopted for the main foundation parts such as base, sliding seat, workbench, column and headstock; cnc milling machine The substructure is a box structure, and the compact and reasonable symmetrical reinforcement structure ensures the high rigidity, cnc milling machine bending resistance and damping performance of the foundation parts; A-span column and internal grid reinforcement effectively ensure the rigidity and accuracy of z-axis strong cutting; The basic parts are molded with resin sand and aging treatment, which provides a guarantee for the stability of the long-term service performance of the machine tool. cnc milling machine
sample
product-1-1

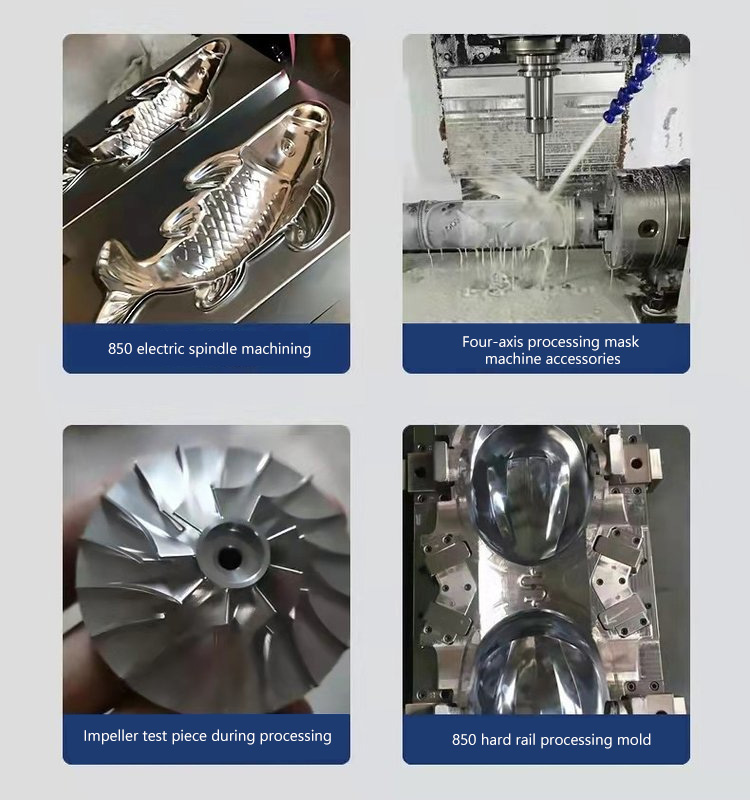

It is widely used to produce the auto spare parts, medical treatment instrument and any kind of injection mould, blowing mould, die-casting mould, car LED mould, toy mould and precise mould and o on. Large steel molds are the first products requiring large cutting amount and fast processing speed. It is applicable to the processing of plastic mold industry, automobile tire industry, hardware industry, toy industry, handicrafts, fine stamping die, bronzing die, high-frequency die, embossing wheel die, die-casting die and graphite electrode. It is the best choice for mold manufacturing industry and parts processing.
product-1-1

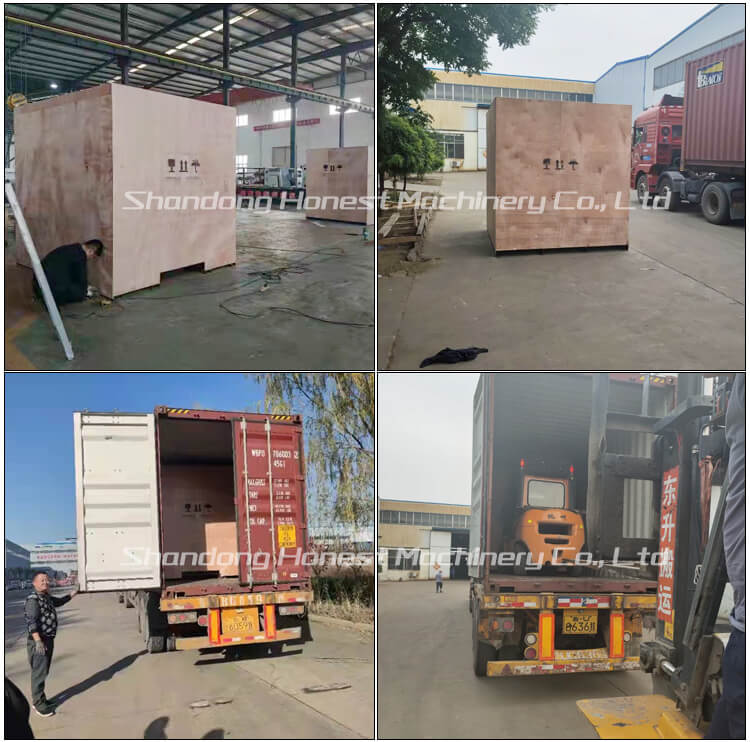

Packaging&Shipping
product-1-1

Packaging Details: 1. Outside package: Standard marine export plywood case. 2. Inner package: Stretchy film and plastic film for humidity. We can package according to your requests. Delivery Detail: Shipped in 30 working days after payment.
Certifications
product-1-1

All products are available upon request, with or without trademarks. If you need OEM service with your own brand or product, please let us know. If you have any other specific requirements, please feel free to contact us. Our factory has obtained the import and export license issued by the Ministry of foreign trade, and passed the iso9001 quality management system certification and CE certification. In the quality layer by layer, we will wholeheartedly serve for the majority of customers.

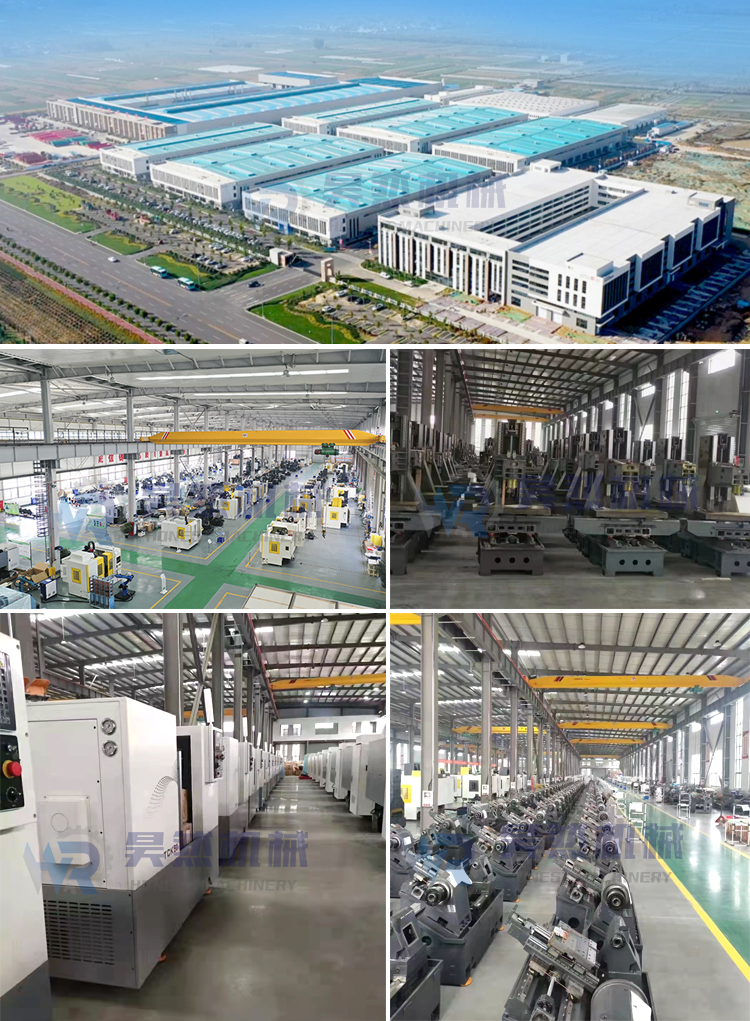

Company information
product-1-1

Shandong honest Machinery Co., Ltd. is a provincial key enterprise specializing in mechanical product R & Development of numerical control equipment. It integrates development, production and sales. The company has a series of CNC Milling Machine ,Machining Center ,Grinding Machines,Milling Machines ,Drilling Machine ,Radial Drilling Machine ,Sawing Machine ,Shaper machine and so on . which are widely used in machinery, mold, advertising, metal processing,in China and exported to Asia, Europe, North America, South America, Africa and other countries. It has advanced manufacturing technology, large production scale and high product quality. Professional user training and timely after-sales service are the basis to ensure customer satisfaction.





Why choose us?

  • We provide comprehensive after-sales services, including installation, training, and technical support for our CNC milling machines.
  • 1 in excellent, be rooted on credit rating and trustworthiness for growth, will keep on to serve outdated and new clients from home and abroad whole-heatedly for Vmc640 4axis CNC Vertical Machining Center.
  • Our CNC milling machines are highly efficient and can increase your productivity and profitability.
  • In order to allow our customers buy comfortably and use them at ease, our production staff have gone through countless experiments and tests to get the final perfect product.
  • Our CNC milling machines are energy-efficient and environmentally friendly, helping you reduce your carbon footprint.
  • We are equipped with professional R&D team, design team and engineering team to provide comprehensive after-sales guarantee for our customers.
  • We offer competitive prices for our CNC milling machines without compromising on quality.
  • We win customers with high quality and efficient service, and establish a high quality market image and brand image.
  • Our CNC milling machines are CE certified, ensuring they meet the highest standards of safety and quality.
  • Our products are exported worldwide, enjoying a fantastic reputation amongst customers for Vmc640 4axis CNC Vertical Machining Center.
