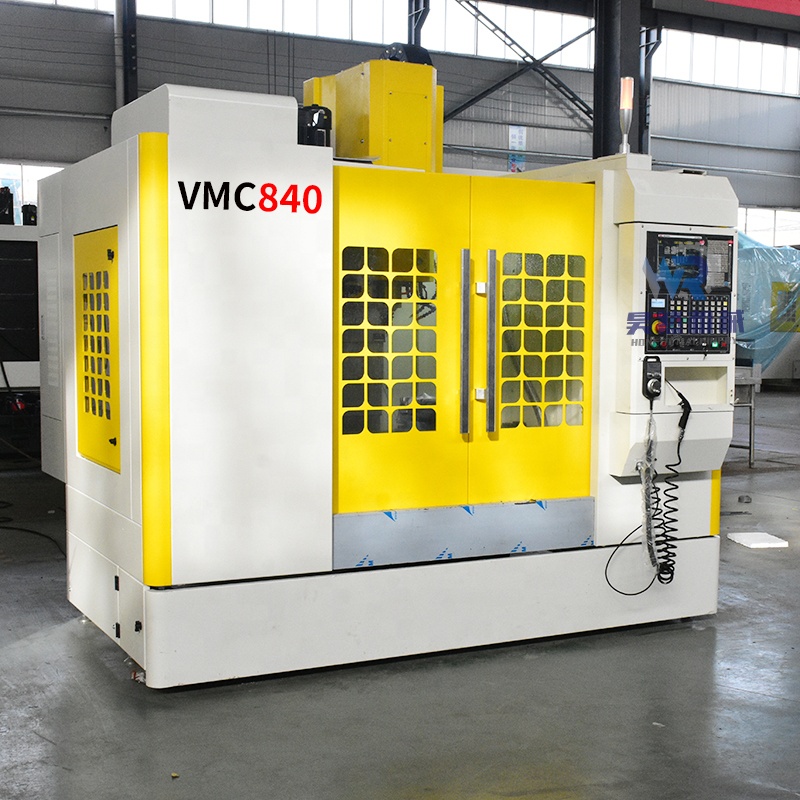

VMC840 3axis CNC Milling Machine
Product Description VMC840 3axis CNC Milling Machine, resin sand casting, honeycomb structure,VMC840 3axis CNC Milling Machine, a new herbone column structure by multi-channel stress removal process,VMC840 3axis CNC Milling Machine reinforced double-layer bench structure,VMC840 3axis CNC Milling...
Description
Product Description
VMC840 3axis CNC Milling Machine, resin sand casting, honeycomb structure,VMC840 3axis CNC Milling Machine, a new herbone column structure by multi-channel stress removal process,VMC840 3axis CNC Milling Machine reinforced double-layer bench structure,VMC840 3axis CNC Milling Machine to improve machine rigidity and stability
Model | VMC840 |
Table size (mm) | 1000x400 |
Max. allowable load (Kg) | 300 |
X-axis stroke (mm) | 800 |
Y-axis travel (mm) | 400 |
Z-axis travel (mm) | 550 |
T-slot | 3-18-140 |
spindle center to Z-axis guide surface (mm) | 445 |
spindle end face to work table (mm) | 100-650 |
Spindle taper hole | BT40-120 |
Spindle speed (r/min) | 8000 |
X/Y/Z rapid movement (m/min) | 30/30/18 |
Machine Weight (Kg) | 3200 |
Product Advantages
1.VMC840 3axis CNC Milling Machine is installed with four axes to reduce the repeated clamping of the workpiece and improve the overall processing accuracy and efficiency
2.VMC840 3axis CNC Milling Machine workpiece measurement can select Meidelong or Renishaw
3.VMC840 3axis CNC Milling Machine or Renishaw milling machine can measure the tool diameter and length
4.VMC840 3axis CNC Milling Machine optional chain chip removal machine small size especially for the treatment of cast iron chips, iron chips effect is remarkable
5. VMC840 3axis CNC Milling Machine can select five axes with new generation system

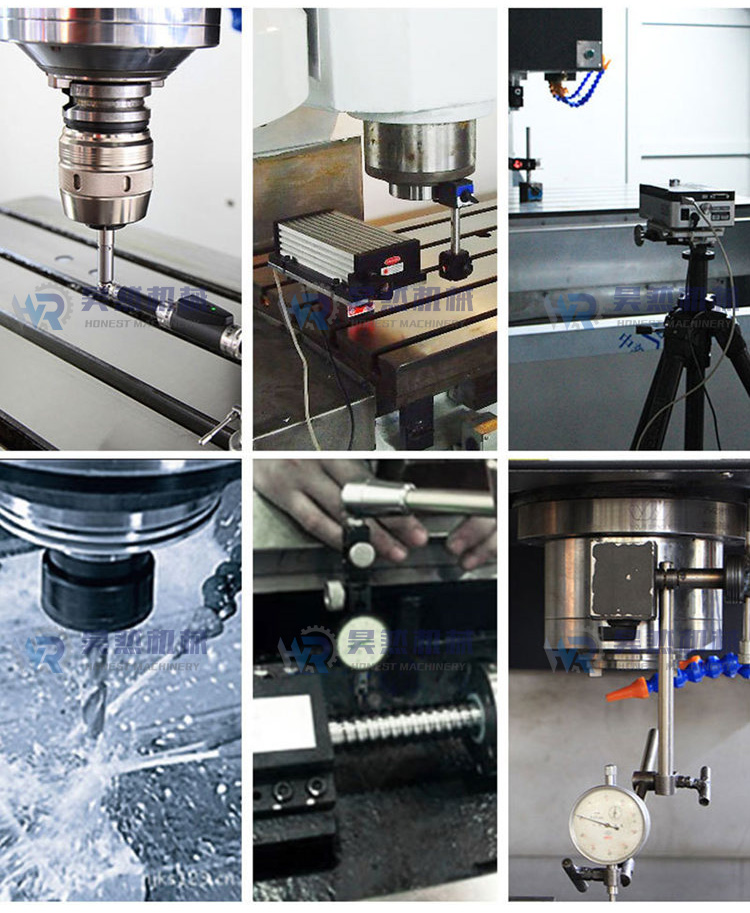

The VMC840 3axis CNC Milling Machine has been tested twice by the Renishaw laser, tested by the ball circle tester and monitored by the dynamic balance vibration to ensure the quality of the machine tool.
sample
Packaging&Shipping
customer visiting
Why choose us?
- We have a strong commitment to continuously improving our products and services to meet the evolving needs of our customers.
- After years of steady development, our company adheres to the concept of improving the quality of life with technological innovation, and brings product technology closer to consumers.
- We use only the best materials and components in our CNC milling machines to ensure long-lasting performance.
- The company continuously upgrades its products, and actively engages in technical exchanges and cooperation with foreign companies in accordance with the country's energy-saving and environmental protection policies.
- We always strive to exceed our customers' expectations by offering top-quality CNC milling machines and exceptional service.
- We broaden the channels of using social talents and play the role of the main channel of existing talents.
- If you are looking for a quality CNC milling machine, you can rely on us.
- Our products are of high quality and strong stability, and are widely praised by customers at home and abroad. We will continue to maintain the spirit of innovation and continue to provide customers with high-quality product packaging.
- Our CNC milling machines come in a variety of sizes and configurations to meet the needs of any manufacturing operation.
- The quality of product packaging is becoming more and more important, directly affecting VMC840 3axis CNC Milling Machine quality and sales and the honor and benefits of the manufacturing enterprise, and is increasingly valued by consumers and enterprises.
Hot Tags: vmc840 3axis cnc milling machine, China vmc840 3axis cnc milling machine manufacturers, suppliers, factory, seiki mill, router for milling, cnc turning & milling center, Aluminium CNC Milling Machine, diy cnc mill aluminum, 4 axis cnc milling machine
